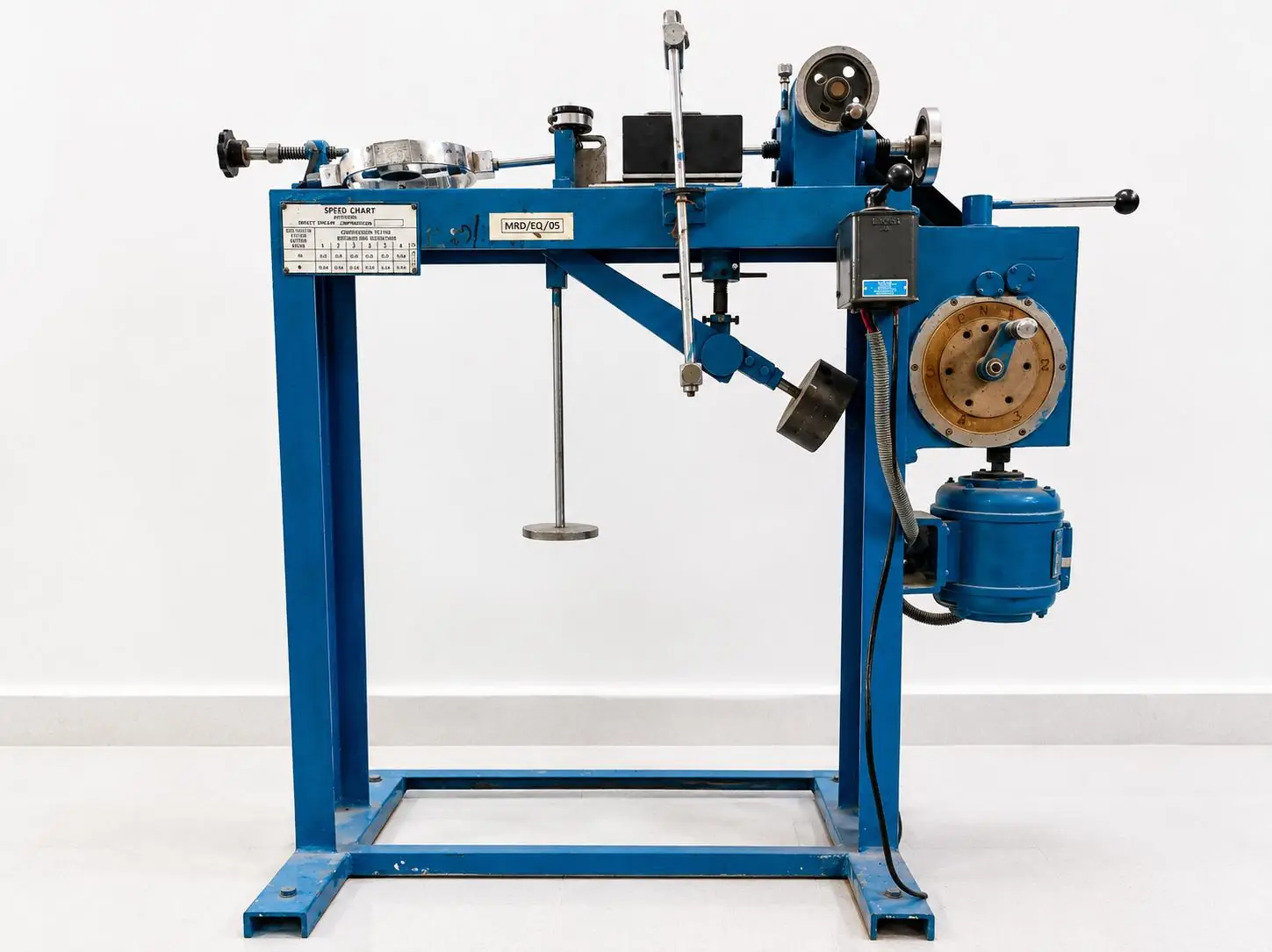

Our central engineering headquarters in Kusum Vihar, Vidhyadhar Nagar, Ramnagariya, Jaipur (302017) houses a multidisciplinary team of senior structural consultants, architects, and geotechnical experts. The campus integrates a comprehensive Materials & Soil Testing Laboratory equipped with motorized Direct Shear apparatus, 2000 kN Compression Testing Machines (CTM), aggregate impact testers, and bitumen penetration baths, directly interfacing with our CAD/BIM structural modeling studio for closed-loop quality assurance.

Safe Bearing Capacity (SBC) is evaluated under IS 6403 using Terzaghi’s and Meyerhof’s general bearing capacity formulations for both general and local shear failure modes. We correlate laboratory Triaxial and Direct Shear parameters (cohesion $c$ and angle of internal friction $\phi$) with field Standard Penetration Test (SPT $N$-values per IS 2131). For shallow strata with permissible settlement under 25 mm, isolated or continuous strip footings are selected. For heavy structural loads or variable strata across Jaipur and North India, raft foundations or bored cast-in-situ RCC friction-cum-end-bearing piles (per IS 2911) are engineered.

Our concrete mix designs are formulated per IS 10262:2019 and IS 456:2000 using Limit State principles. We leverage Abrams' Water-Cement Ratio Law—ensuring compressive strength is strictly calibrated against the capillary void ratio—and Lyse's Rule for aggregate proportioning. Target mean compressive strength (f'ck = fck + 1.65σ) is verified through statistical standard deviation σ. High-performance mixes integrate fly ash/GGBS for pozzolanic micro-filler effect, reducing thermal cracking and heat of hydration in high-volume infrastructure pours.

All multi-story frames and public transit structures are engineered in strict compliance with IS 1893 (Part 1): 2016 for Earthquake Resistant Design and IS 13920:2016 for Ductile Detailing of Reinforced Concrete. Jaipur falls within Seismic Zone II ($Z = 0.10$), while regional railway networks span into Zone III ($Z = 0.16$). We perform dynamic modal response spectrum analysis, strictly limiting inter-story drift to $0.004h$, providing confinement stirrups at beam-column joint cores, and designing 'strong column-weak beam' mechanisms to prevent catastrophic collapse during seismic events.

Structural proof-checking involves independent finite element verification of bending moments, shear forces, deflection limits, and foundation stability against contractor submittals. For construction execution, we generate computerized Bar Bending Schedules conforming to IS 2502, computing cut lengths, hook allowances, bend deductions ($45^\circ$, $90^\circ$, $135^\circ$), and rebar lap locations outside high-stress tensile zones to minimize steel wastage below $2.5\%$ on high-capacity railway and commercial sites.

Subgrade performance depends on Moisture-Density relationships established via the Modified Proctor Compaction Test (IS 2720 Part 8). By identifying the Optimum Moisture Content (OMC), soil particles achieve Maximum Dry Density (MDD) with minimum void ratio under mechanical rolling. For semi-arid soils and sand dunes in Rajasthan, we conduct soaked California Bearing Ratio (CBR per IS 2720 Part 16) tests to determine flexible pavement thickness per IRC:37, preventing rutting and fatigue cracking under heavy vehicular axles.

When non-destructive rebound or ultrasonic tests yield ambiguous readings, or when 28-day cube strength fails compliance criteria, core extraction is performed in accordance with IS 516 (Part 4): 2018 and IS 456. Diamond core barrels extract cylindrical samples from low-stress structural zones, which are trimmed, capped with sulfur or high-alumina paste, length-to-diameter ($L/D$) corrected, and tested for compressive strength. This forensic audit determines whether retrofitting, micro-concreting, or carbon fiber wrapping (CFRP) is required.
